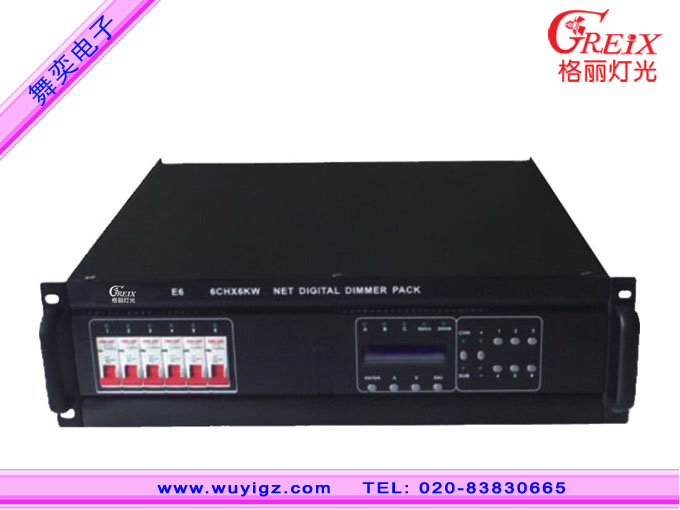

GR E6、E12 6x6 kw, 12 road x 3 kw Intelligent digital silicon box
E6 Power: 6 Road×6KW. Each loop maximum output power up to 7kW.
E12 Power: 12Road ×3KW. Each loop maximum output power up to 4kW.
E6 Size: L515×W485×H133mm weight:18kg
E12 Size:L515×W485×H133mm weightW:18 kg
Power supply: three-phase five- wire AC380V±10%, frequency 50Hz ± 5%.
Signal Interface: Digital Dual DMX- 512 (1990).
The silicon box's core component silicon-controlledrectifier chip usesGermany original installation impo- rted material, the stable property is reliable.
Highly effective antijamming impedance coil antijamming abilityis greatly strengthened, the noise is small, current-rise time 220us-450us.
Signal input: Double Digital DMX-512 (1990): DMX A and DMX B.
Dimming curve: 10. Dimming Range 1% -100%.
