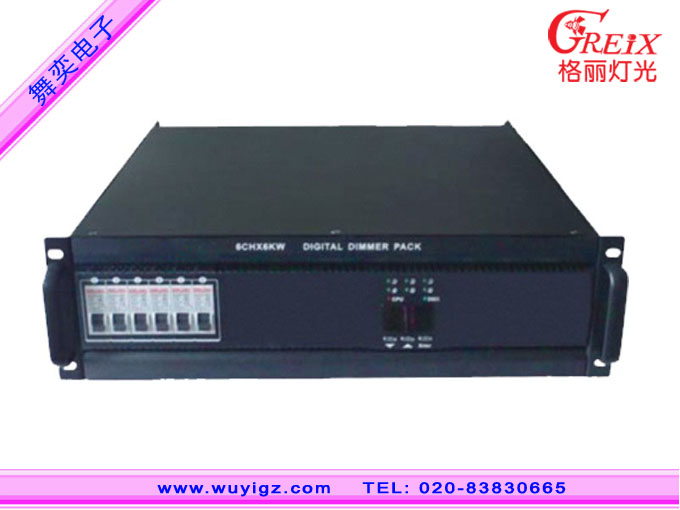

GR D6 、D12 6 x 6 kw, 12 road x 3 kw Digital silicon case
Power supply: three-phase five- wire AC380V ± 10%, frequency 50Hz ± 5%.
Signal Interface: Digital Dual DMX- 512 (1990).
D6 Power: 6 Road×6KW . Each loop maximum output power up to 7kW.
D12 Power: 12Road×3KW . Each loop maximum output power up to 4kW.
Overall dimensions (mm): L515×W485×H133, Stand-alone weight: 18kg.
The good heat dissipating arrangement and forces the forced-air coo-ling and the intelligent environmental protection control system unifies.
Antijamming abilityis greatly strengthened, the noise is small, current-rise time 220us-450us.
The DMX512 signal may establish to maintain or not the hold mode. At maintains under the condition, the lighting consoleDMX signa interrupt, will maintain the last data,cannot the dark field.
