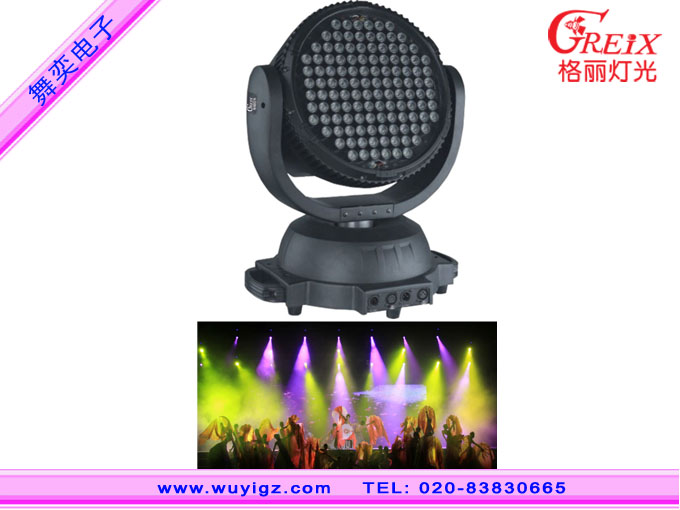

GR-1203
Detail Info
Input voltage：90V~260V,50/60Hz
Power：400W
IP Rating:IP 20
LED:120pcs 3W LEDs(R30,G30,B30,W30)
Size（LxWxH）： 515x402x555mm N.W：19kg G.W：21kg
Lighting equipment is installed with 120pcs LED.We use EDISON LED chip as default LED chip .
Client also can choose LUXEON K2 high power LED chip
Low power consumption,super luminance,rich and splendid color.
The average service life of every LED reach 100000 hours.
DMX- 512 control signal , 12 standard channels.
Optics lens angle:standard 15;it is also can be choose to 45 angle .
Wide range super micro smoothly scanning,horizontal scanning angle reaches 540° and vertical 225°,the scanning precision reaches 8bit and 16bit,with smooth and precise positioning,additionally,the scaning spead is adjustable.
Infinite RGBW color system.
It adopt the LCD display,as its operating interface,the words can also be plus or reverse setted by 180°,very easy for using on the floor or hang on.
With inner automatic run function ,master/slave setting very easy to operate by users .
The fixture's out shape adopt pressed consruction design and trong wind refrigeration system which be know as a good cooling system.
Power：400W
IP Rating:IP 20
LED:120pcs 3W LEDs(R30,G30,B30,W30)
Size（LxWxH）： 515x402x555mm N.W：19kg G.W：21kg
Lighting equipment is installed with 120pcs LED.We use EDISON LED chip as default LED chip .
Client also can choose LUXEON K2 high power LED chip
Low power consumption,super luminance,rich and splendid color.
The average service life of every LED reach 100000 hours.
DMX- 512 control signal , 12 standard channels.
Optics lens angle:standard 15;it is also can be choose to 45 angle .
Wide range super micro smoothly scanning,horizontal scanning angle reaches 540° and vertical 225°,the scanning precision reaches 8bit and 16bit,with smooth and precise positioning,additionally,the scaning spead is adjustable.
Infinite RGBW color system.
It adopt the LCD display,as its operating interface,the words can also be plus or reverse setted by 180°,very easy for using on the floor or hang on.
With inner automatic run function ,master/slave setting very easy to operate by users .
The fixture's out shape adopt pressed consruction design and trong wind refrigeration system which be know as a good cooling system.
